FEATURES:

• Intel Arm awning provides shade and protection from the sun and rain

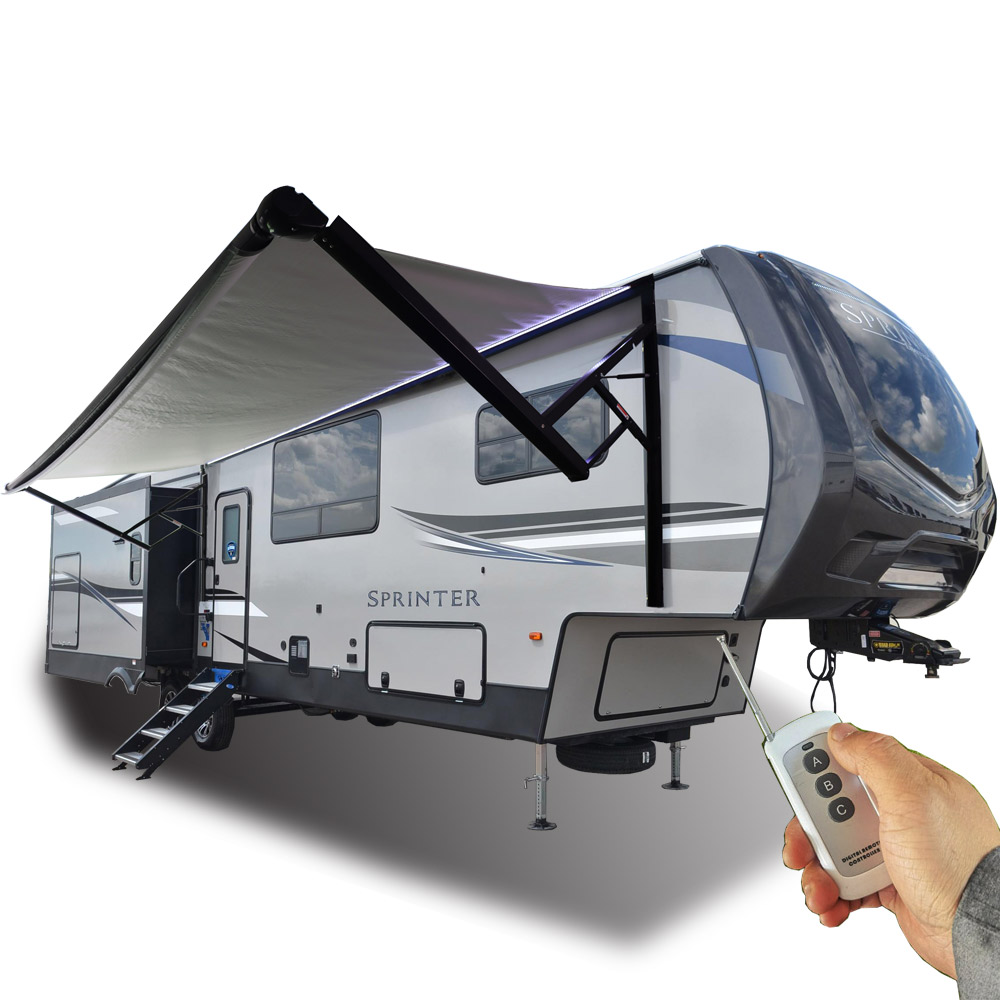

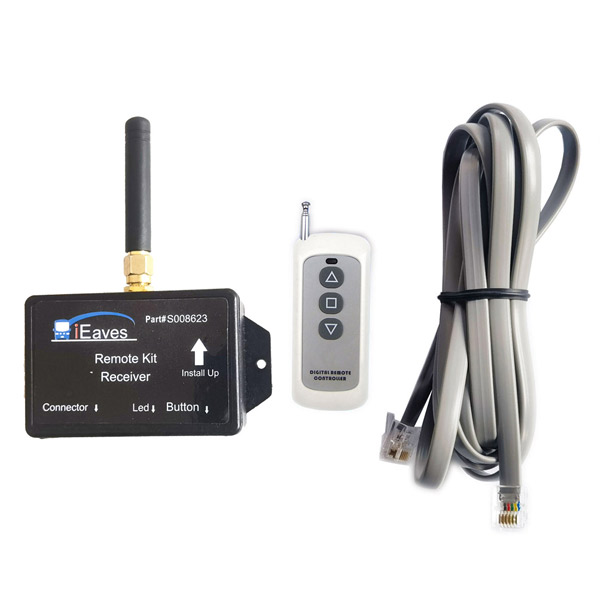

• Powered awning extends and retracts with the push of a button or remote.

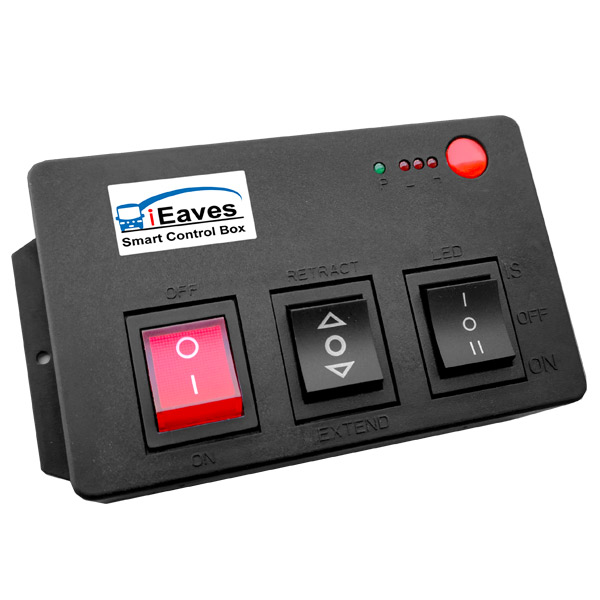

• Integrated smart control box for easy installation
• Traditional control switch that mounts inside your RV is also included
• Simple angle adjustment keeps you shaded from the sun at different times of day
• Manually move arms pitch adjustment to adjust awning pitch for perfect shade
• Auto rain dump feature releases water when it pools in the canopy

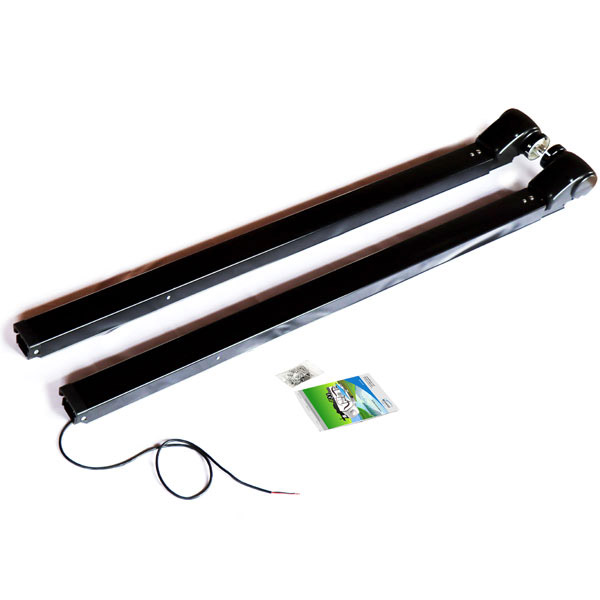

• Awning arms automatically drop to release the pooled water and then return to their original position
• Add-on features provide intelligent, programmable settings

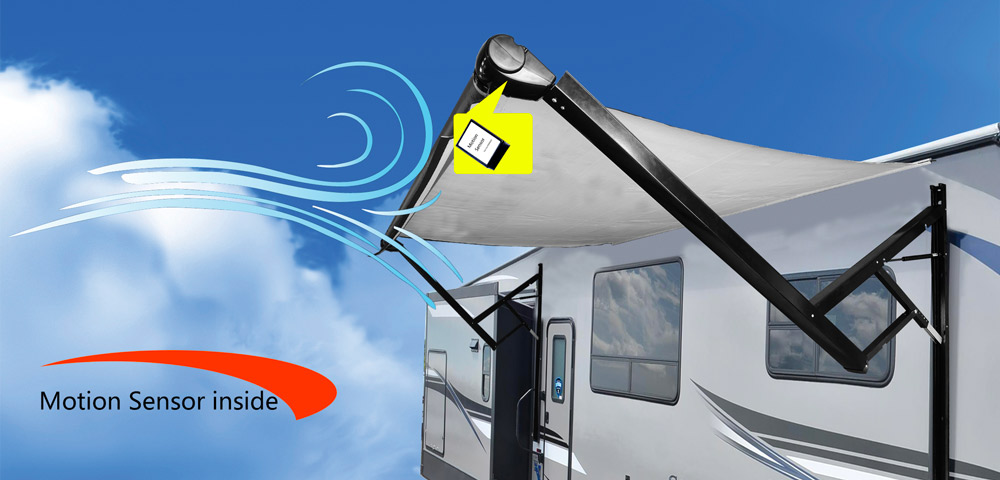

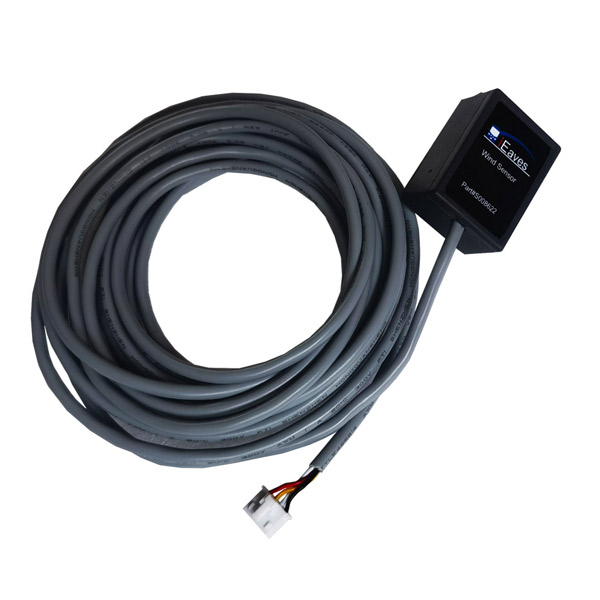

• Wind sensor automatically retracts awning during high winds to prevent damage.
• LED light kit (sold separately) Standard 16.4feet, other lengths need to be customized.

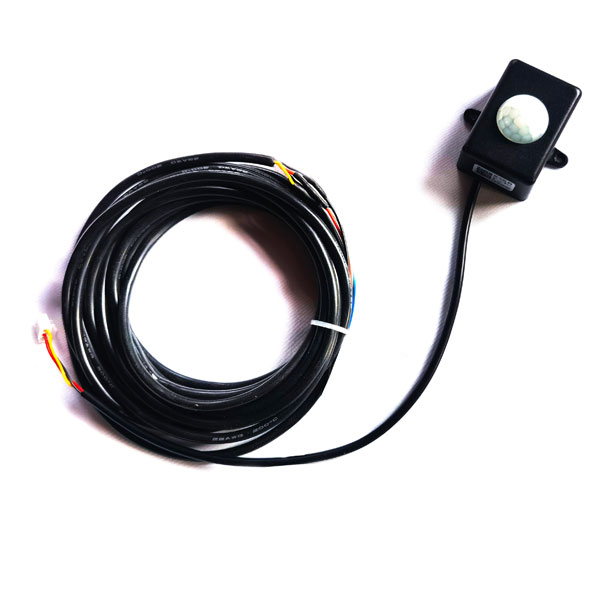

• Infrared security sensor (IS sensor) offers added security by turning on awning lights when motion or heat is detected
• Durable fabric is made with premium 16-oz vinyl
• Black Fade fabric matches included roller tube and arms, other color need to be customized
• Simple installation with included hardware
• Awning rail ( sold separately) required to attach fabric to RV

SPECIFICATION:
Motor voltage: 12 volts
Dimensions:
Wall-mounted bracket: 69" tall
Roller tube: lengths need to be customized.
Canopy fully extended: 8' long
Canopy length: 8'-21feet width, The lengths need to be customized
Installation Tips
Minimum clearance of 2-1/2" between awning rail and top of entry door is required
69" Of open space is needed on wall of RV from awning rail straight down for installation of wall-mounted brackets
